OEM for professional installation only (excludes JG fitting kit - A0017393)

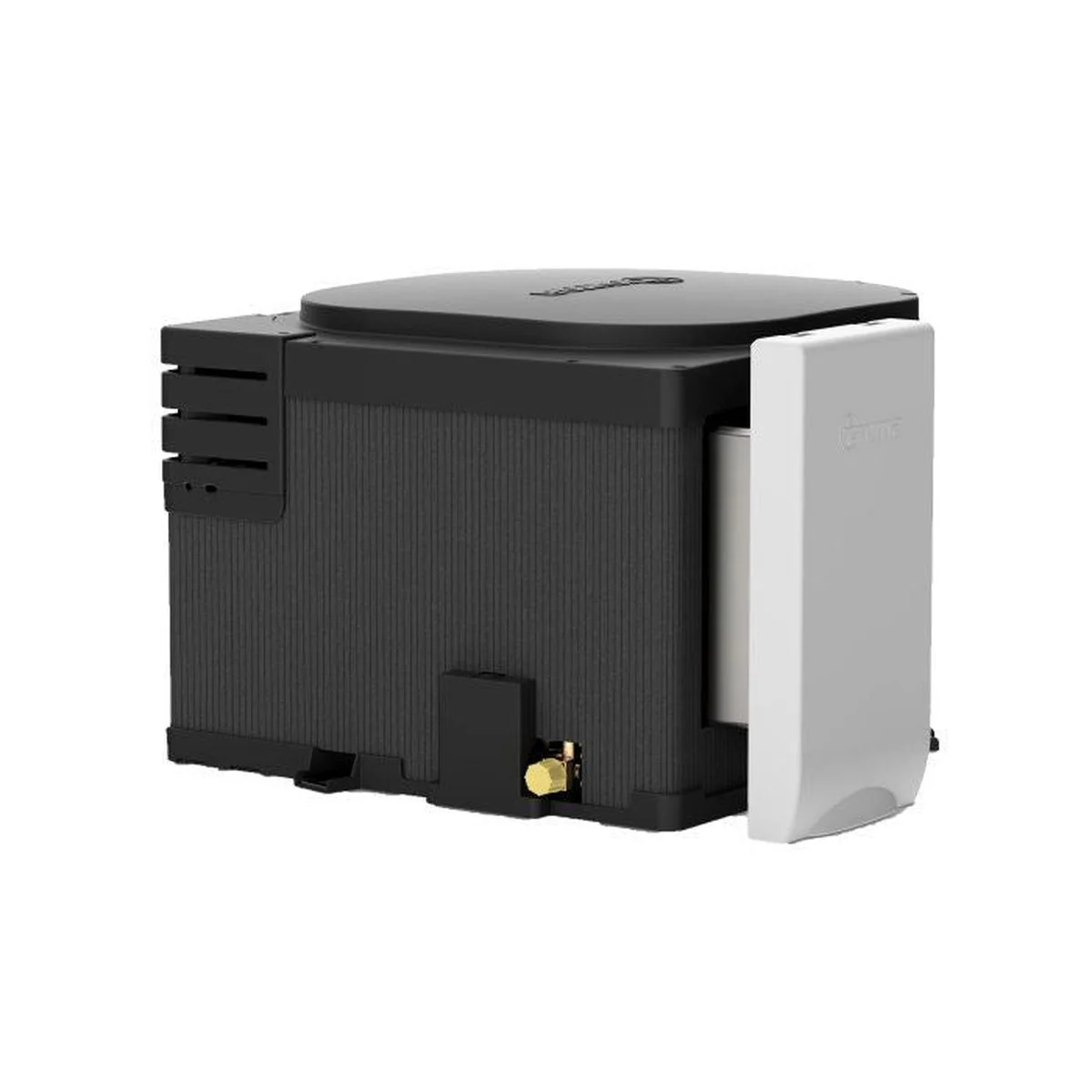

A powerful gas burner heats the water in your caravan or motorhome quickly – completely without a power supply. The gas boiler has excellent insulation to ensure that almost no heat is lost. If the water temperature drops, the electronics reignite automatically. Set the desired water temperature anywhere between 30°C and 70°C with the control unit.



·        Stainless steel water tank

·        Space saving - 10L tank only measuring 26cm in height

·        Powerful 1.5kw gas burner

·        Heating up time 35mins for 10L

·        Reduces to 20 mins with gas and electric versions (10L)

·        Closed combustion system with wall flue

·        Easy to operate- temperature selection approx 30 - 70 degrees

·        Low battery load - 12v - ignition 0.17A - heating up 0.08A - stand-by 0.04A

·        Suitable for all submersible and pressure pumps up to 2.8bar

·        Gas and electric (850-1300W)

·        10L capacity complete with control panel



Energy sources: Propane / butane

Output of electric heating element: 230V 50Hz

Gas output: 1500W

Water capacity: 10 litres

Gas consumption: 120g/h

Weight empty: 7.4Kg

Power consumption (at 12 V): Ignition: 0.16 A Heating: 0.12A Stand-by: 0.05A

Temperature limit: 70°C

Pump pressure: max. 2.8bar

System pressure: max. 4.5bar



Item No. 73611-20

To convert to John Guest fittings - order A0017393
