OEM for professional installation only!



The Truma Combi 2E kit includes the Truma CP+ digital control panel. The CP+ control panel is also iNet ready. The Truma iNet system enables control of your Combi 2E from your tablet or mobile phone via an app. Additionally, if you have a Truma air-conditioning unit installed, the control panel can automatically co-ordinate the heater and air conditioning unit to ensure your living space maintains a comfortable and controlled environment.

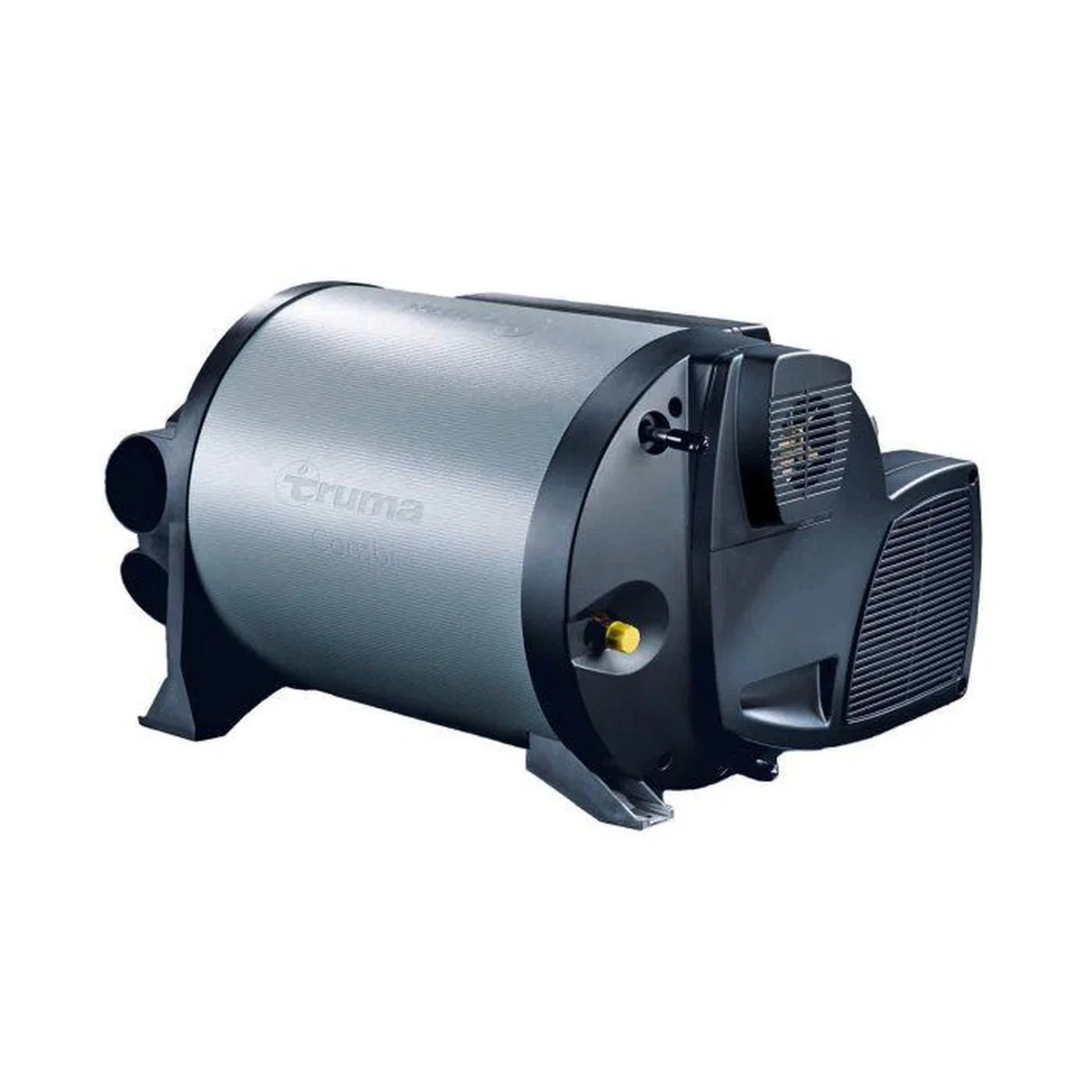

·        Heater model: Truma Combi 2E

·        Dimensions (L x W x H): 510 x 450 x 300 mm

·        Installation dimensions (L x W x H): 540 x 500 x 350mm**

·        Weight (when empty of water): 15.1kg

·        Heating time (from 15°C to 60°C) (Water only): Approx. 20min.

·        Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.

·        Rated thermal output (Electric): 980 W / 1960 W

·        Rated thermal output (Gas): max. 1950 W

·        Rated thermal output (Electric & Gas Combined): 3900 W

·        Fuel consumption (Gas): 130 g/h

·        Water capacity: 10 litres

·        Air flow rate: Max. 287 m3/h

·        Power consumption (at 230V): 3.9A / 7.8A

·        Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)

·        Water pressure: MAX 2.8 Bar



Heater (excluding exhaust duct) comes complete with room thermostat, control panel with 3 m cable, mounting parts and elbow fittings for 10mm Ø water hoses. Models with water connections for semi-rigid piping (John Guest System) available on request.



Item No. 33113-80/GPSP

Gas type: LPG Propane / Butane
