OEM for professional installation only!

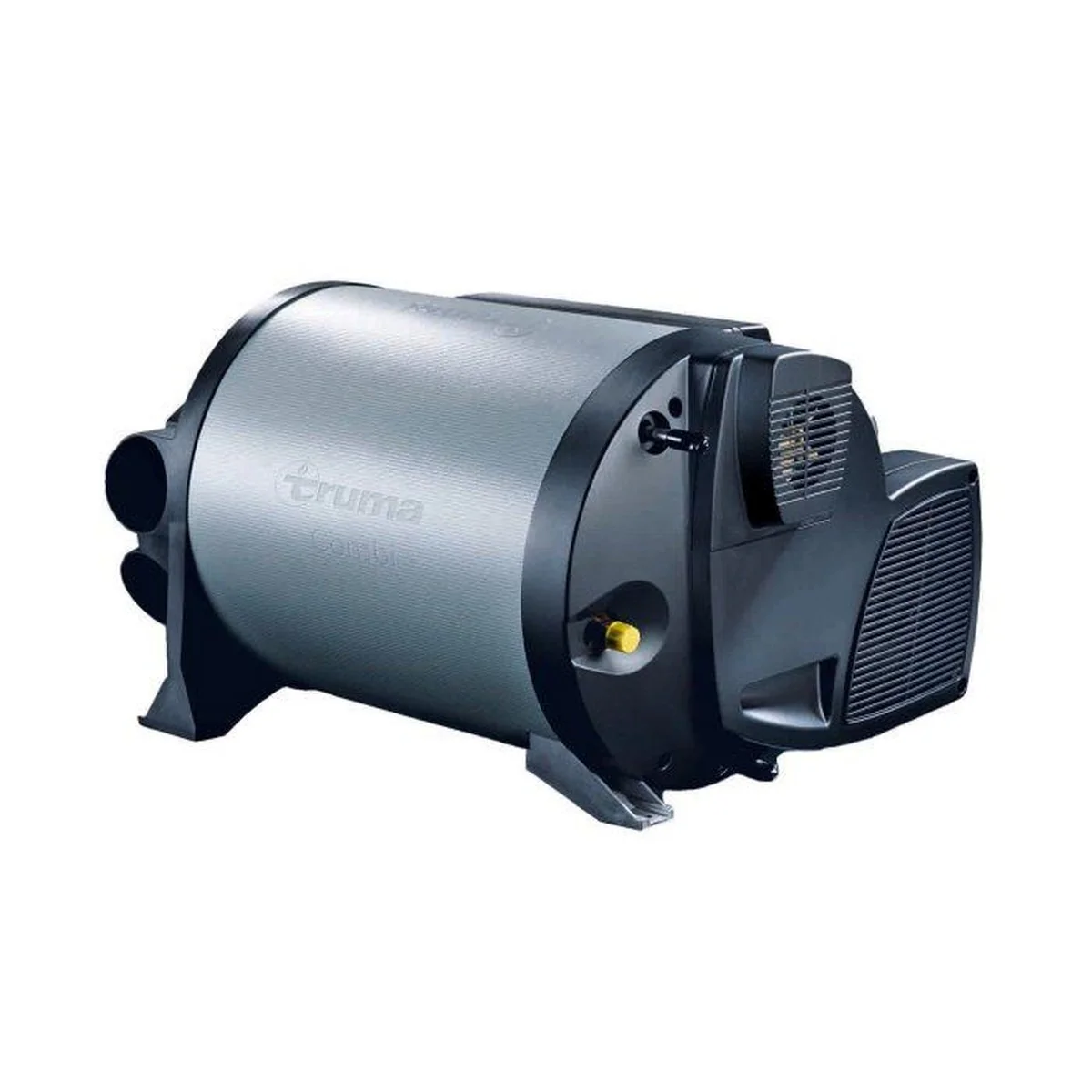

Truma Combi 4E 30mbar 12V Electric Heater 230V 1800W All of the energy types are available – always with maximum efficiency and all of the technical advantages for your wellbeing. You are therefore not only looking after the battery, but also your wallet. Note: When buying a Combi, you must choose either a 4kW (2 heat settings) version or a 6kW (3 heat settings) version and whether it has the option for electric heating. You must then purchase separately any necessary warm air distribution ducting. Comes with flue kit.



·        Constant comfortable temperature

·        Optimum warm air distribution through 4 warm air outlets

·        Short water heating time, but no need to cut your shower short

·        Durable stainless steel water tank

·        Lightweight and compact

·        Interior installation

·        10 litre capacity

·        High heat output of 4000W (Combi 4)

·        With integrated 1800W heating elements

·        Combined gas/electrical operation possible on 4E

·        Straightforward connection to the existing gas system

·        Environmentally friendly and maintenance-free

·        Boiler heating time in accordance with EN 15033: approx. 20min

·        Extremely low power consumption: on average approx. 1.2A, 0.2–5.6A (12 V), 3.9–7.8A (230V - 4E and 6E)

·        Low gas consumption: 160-320g/h (Combi 4), 160–480g/h at 1000W of heat output on average



Heater (excluding exhaust duct) comes complete with room thermostat, control panel with 3 m cable, mounting parts and elbow fittings for 10mm Ø water hoses. Models with water connections for semi-rigid piping (John Guest System) available on request.



Item No. 33713-78GPX

Gas type: LPG Propane / Butane

Rated heat output: 4000w – mixed mode: 3900w – electrical mode: 900w & 1800w

Gas consumption: 335g/h

Power consumption (12v): heater and water container 1.2 - 6.5A, heating up water container 0.5A

Power consumption (230v): 900w 3.9A – 1800w 7.8A

Heating air flow rate: Max 287m³/h

Water heat-up time approx. (15°C - 60°C): water container 23min – heater and water container approx. 80min

Water capacity: 10ltr

Max pressure when using a pressure pump for water: 2.8bar
