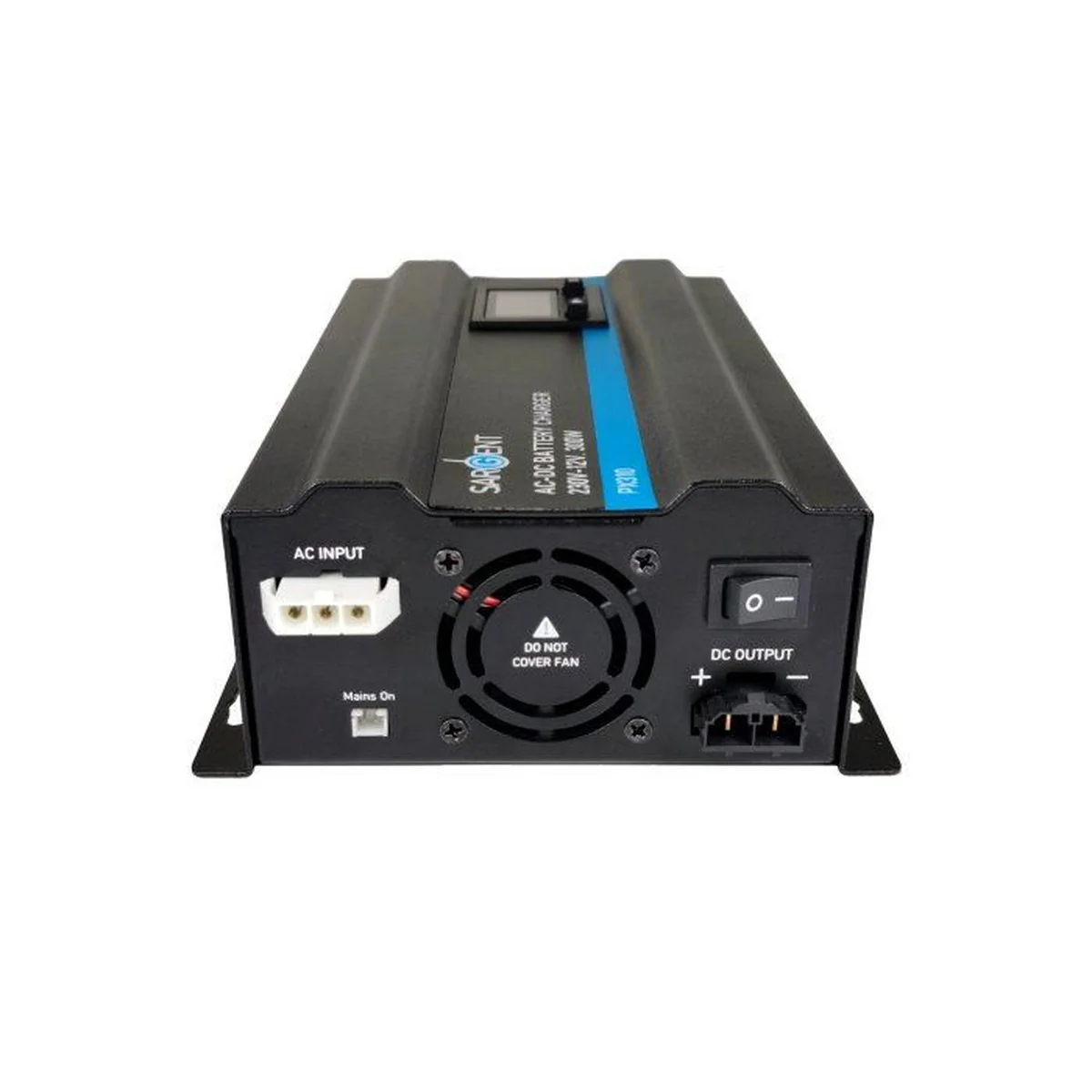

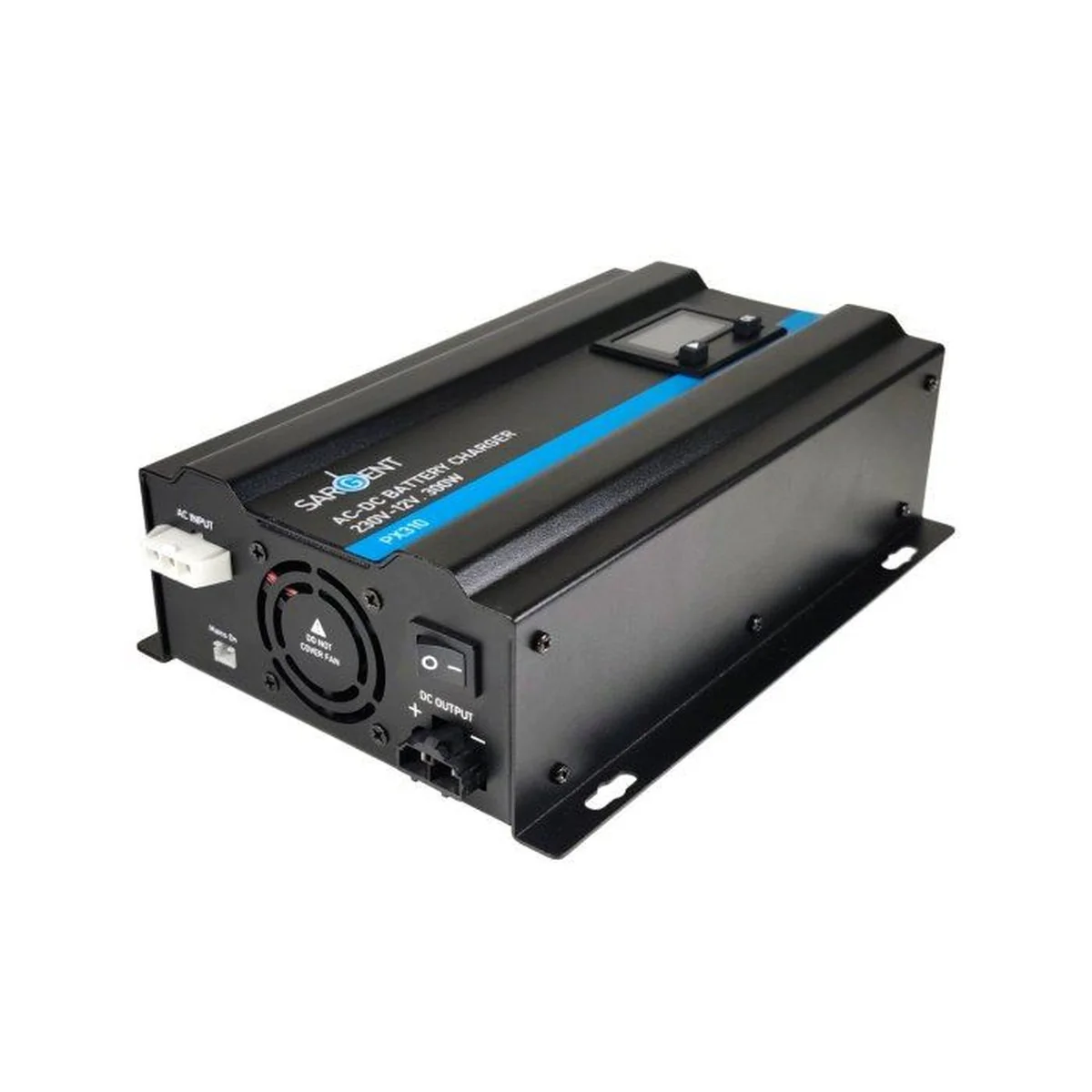

The PX310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances. The integrated LCD display shows battery charging status and allows setup for different battery chemistries. A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.



·        Multi stage charging – 3 stage profile maximises charge into the leisure battery

·        High capacity output – up to 20Amps for charging batteries from 70 to 220Ah

·        Integrated LCD display – for charge set-up and display of battery charging status

·        PSU mode – charger works as a power supply when no battery is fitted

·        Quiet operation – from intelligent fan cooling with silent mode

·        Lithium wake-up mode – charger can wake a sleeping lithium battery

·        Fully protected – built-in overload, short circuit and over temperature protection



Power: 300w

Input voltage: 200-240V AC

Charging current (max): 20A @ 14.5V

Boost voltage: 14.7V (max)

Float voltage: 13.8V (max)

Compatible batteries: Flooded, GEL, AGM, Lithium

Battery Size: 70-220Ah

Weight: 1.55Kg

Dimensions (LxWxH): 221 x 157 x 67mm
