Weight-optimised AL-KO spare wheel carrier for caravans with easy retrofitting capability

Product Information

A0019328 - AL-KO Wheel Carrier 1555934 1555934

The AL-KO spare wheel carrier is designed for caravan storage, placing the spare wheel under the trailer to save space. Mounting directly behind the axle lowers the chassis center of gravity and improves driving response. The spare wheel is accessible from the street-facing side, minimizing accident risk. Compatible with AL-KO chassis from 1985 onwards.

Key Features

• Space-saving storage for spare wheel
• Low weight design
• Optimum mounting directly behind axle
• Lower centre of gravity and improved driving response
• Retrofittable to AL-KO chassis from 1985 model year onwards
• No TUV certification or approval required

Specifications

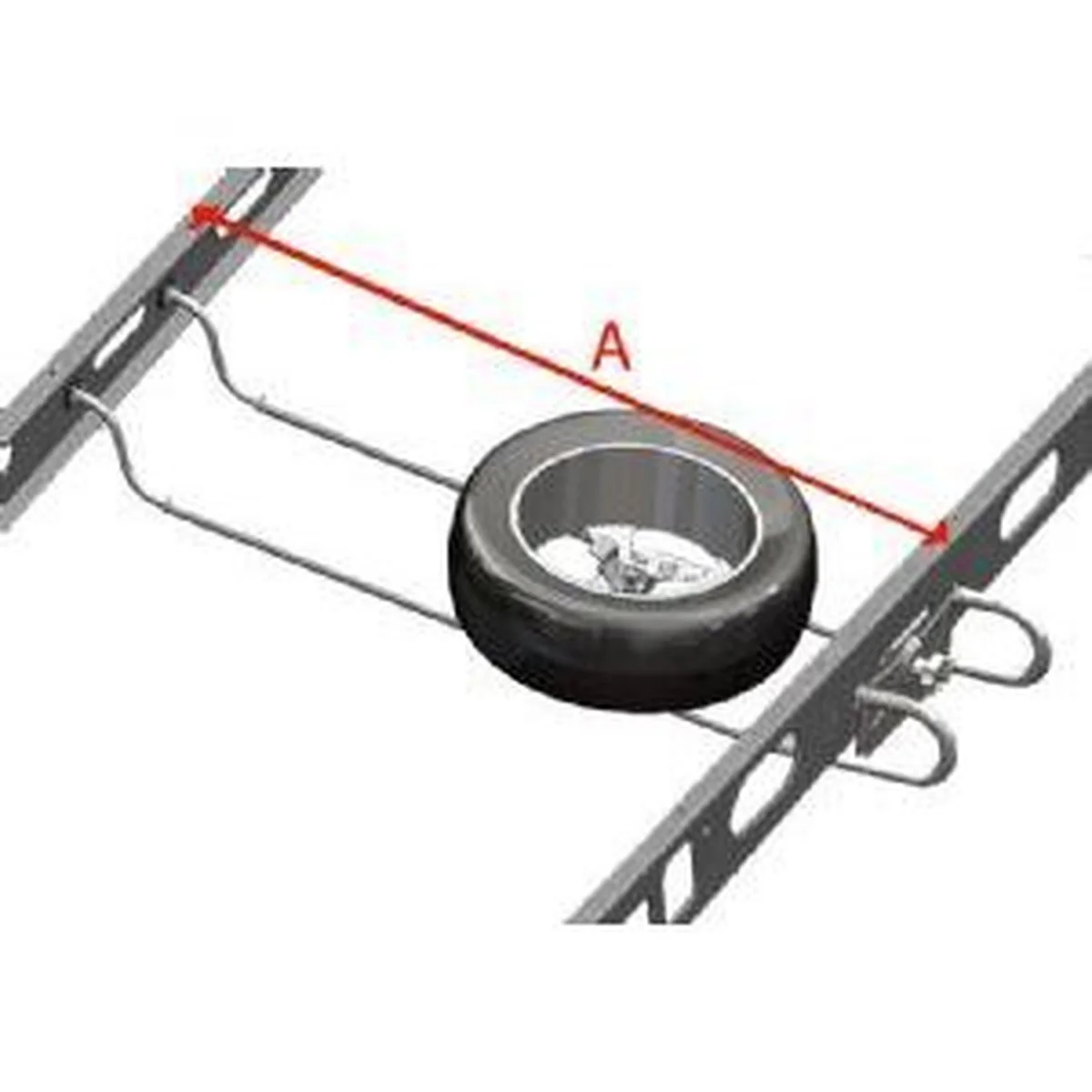

• EH1 - A: 6.4 kg, Frame gap 1050-1250 mm
• EH1 - B: 6.8 kg, Frame gap 1250-1550 mm
• EH1 - C: 7.7 kg, Frame gap 1450-1850 mm
• EH1/BR - D: 6.8 kg, Frame gap 1265-1515 mm
• EH1/BR - E: 7.7 kg, Frame gap 1465-1815 mm
• Retrofit accessory kit EH2: 1.85 kg
