Shock absorbers for caravans ensuring immediate vibration dampening, improved driving and braking stability, and optimum ground contact for safe and convenient driving.

Product Information

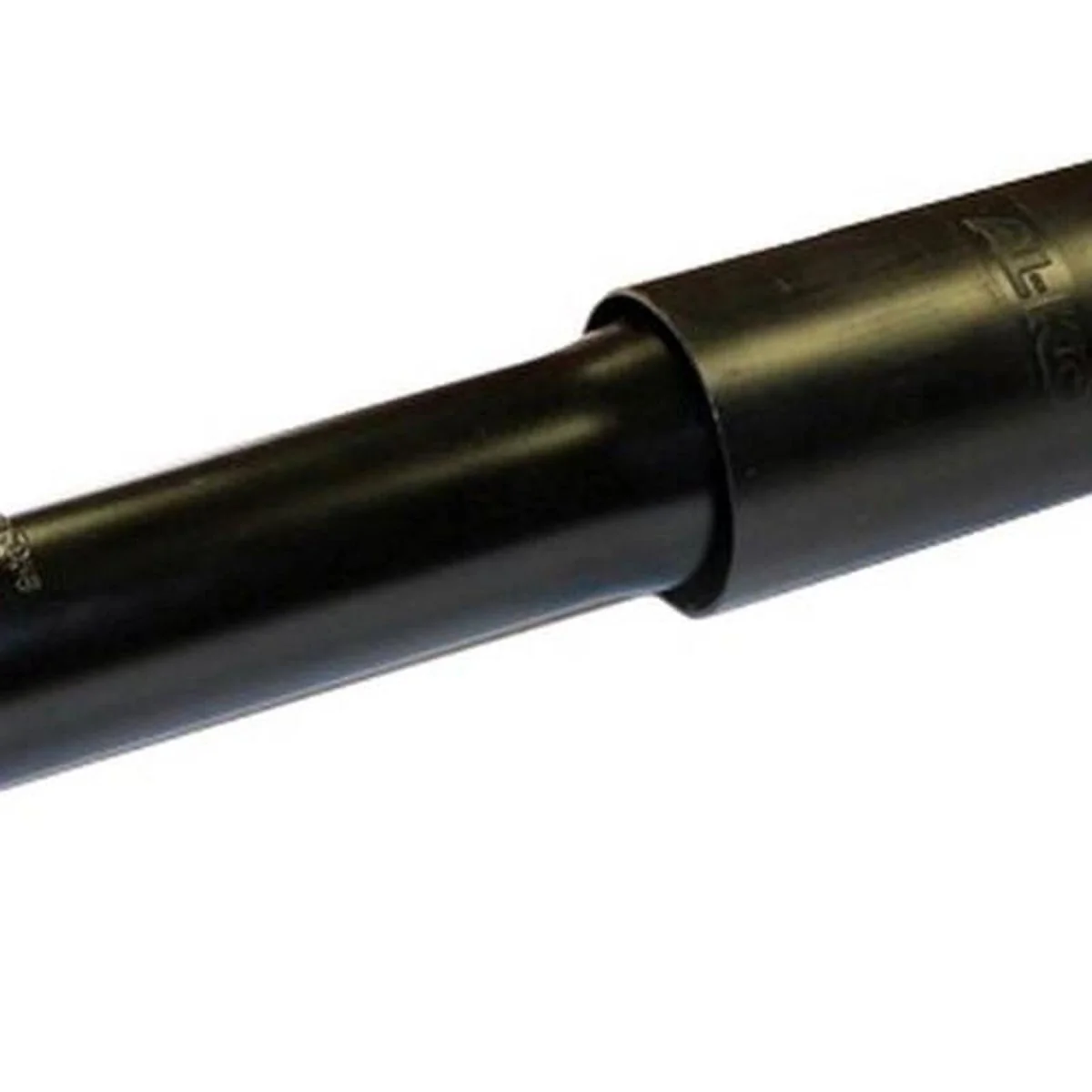

83110 - AL-KO Shock Absorber (244087)

Inadequate shock absorption can cause dangerous trailer bouncing even on minor road imperfections. AL-KO shock absorbers prevent vibrations from developing into hazardous bouncing that could result in loss of vehicle control. The company offers shock absorbers specifically designed for particular trailer weight classes, color-coded by permissible gross weight, ensuring optimal vibration damping across their respective ranges rather than covering overly broad weight spans that compromise performance.

Key Features

• Overload protection
• Quality seals
• Chrome-plated sintered metal valve
• Piston rod with 0.1 Ra roughness
• Dust protection between inner and outer tube
• Special oil formulation
• Rubber-mounted articulation connection eyes
• Installation angle tolerance up to 5 degrees
• Quick and simple assembly with minimal tools required
• Multiple bracket mounting options available

Specifications

• 244087 - Single-axle weight: 4000 kg, Two-axle weight: 7500 kg, Weight: 1.3 kg, Color: black
• 244085 - Single-axle weight: 1350 kg, Two-axle weight: 2700 kg, Weight: 1.3 kg, Color: blue
• 244084 - Single-axle weight: 900 kg, Two-axle weight: 1600 kg, Weight: 1.3 kg, Color: green
• 244086 - Single-axle weight: 2000 kg, Two-axle weight: 3500 kg, Weight: 1.3 kg, Color: red

What's In The Box

• Shock absorber unit
• Screws
• Nuts

Why Choose AL-KO?

AL-KO is a market leader in caravan and motorhome chassis technology, axles, stabilisers and safety systems. With decades of German engineering excellence, AL-KO components are trusted as original equipment by leading caravan and motorhome manufacturers across Europe.
